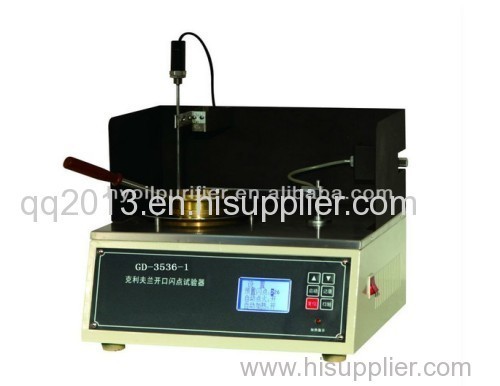

GD-3536-1 Low Price Hot Sale Flash Point Test intrument

Price:	10.0~100.0 USD
Payment Terms:	T/T,L/C
Place of Origin:	Chongqing, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: GD-3536-1

Production Capacity: 50 sets one month

Delivery Date: 5-7 days

Standards: ASTM D92, GB/T3536

Display: Digital

Gross weight: 10kg

Means of Transport: Ocean,Land,Air

Packing: wooden case

Brand Name: Gold

Warranty period: 1 year

Packing size: 73cm*41cm*40cm

Lead time: 5-7 days

1.Flash Point Tester digital display;
2.ASTM D92 standard;
3.Open cup;
4.Semi-automatic;
5.Low price

Application:

Thisintrument is designed and made as per the National Standard GB/T2008 "Test Methods for Flash Point and Fire Point of Petroleum Products (Cleveland Open Cup Methods),

It is used to determine flash point of petroleum products and bituminous materials, excepting fuel oil and materials having a flash point of lower than 79 °C.

Technical specifications:

1.Power supply: AC220V±10%, 50Hz

2.Heating device:

(1) Heating power is adjustable in the range of 0~600W;

(2)The highest heating temperature is 400°C

3. Temperature display: LCD display various kinds of temperature parameters, 0~400°C, Accuracy: 0.1°C

4. Flame application device: automatically scan

5. Temperature Sensor: PT100 Resistor Temperature Sensor

6. Ignition device:

(1) Ignition source: coal gas (or any other combustible gas);

(2) Spout aperture: 0.6∼0.8 mm;

7. Working Temperature: -10°C∼50°C

8. Relative humidity: ≤85%

9. Total power consumption: not more than 650 W

Fullset:

No.	Name	Unit	Quantity	Remark
1	Main unit	Set	1
2	Cleveland oil cup	Piece	1	We can provide more if you required.
3	Ignition device	Set	1
4	Thermometer	Piece	1	-6°C~400 °C, graduated scale is 2 °C
5	Thermometer support	Set	1
6	Power supply wire (250 V 6 A)	Piece	1
7	Fuse 5 A (Φ5×20)	Piece	2
8	Latex tube Φ6	Meter	1.5	Could not be used as coal gas tube
9	Joint for coal gas tube	Piece	1	Connect coal gas tube and latex tube
10	Extinguishing cover	Piece	1

The same series products:

Model	GD-267	GD-3536	GD-3536-1	GD-3536A	GD-3536D
Range	Ambient~360°C	Ambient~400°C	Ambient~400°C	Ambient~300°C	Ambient~400°C
Repeatability	≤4°C	≤8°C	≤4°C	≤8°C	≤8°C
Reproducibility	≤6°C	≤16°C	≤6°C	≤16°C	≤16°C
Fire point	Y	Y	N	N	Y
Automatic up/down	N	N	N	Y	Y
Automatic detect	N	N	Y	Y	Y
With microprinter	N	N	Y	Y	Y
Communication port	N	N	N	N	Y
Display	N	N	N	Y	Y
